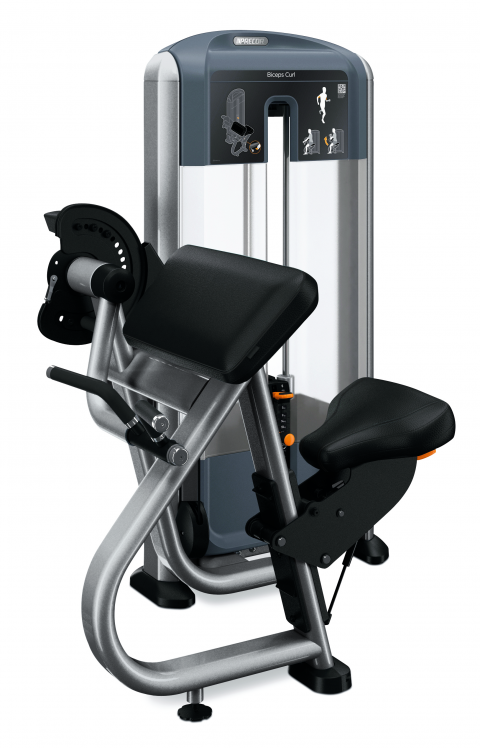

Ease-of-use and reliability are core attributes of the Discovery™ Series Selectorized Line Biceps Curl. The ratcheting gas-assisted seat adjusts to fit a wide range of users. Handle grips are angled for proper exercise mechanics. Contoured arm pad with leading edge allows for optimal support and comfort without restricting proper breathing.
The angle of the handles ensure user maintains proper hand and arm positioning throughout the range of motion, maximizing muscle engagement.
The unique ratchet adjustment fits all users and allows the seat to be easily adjusted from the start position.
The arm pad positions arms for maximum comfort and muscle efficiency, ensuring users get the most out of their workout
Units have fully shrouded weight stacks in full compliance with ASTM and EN standards.
Each selector plate is entirely precision-machined on all surfaces. Top plate has replaceable precision self-lubricating bushings.
The plates feature a black painted protective finish. Guide rods are precision centerless ground, polished, with corrosion-resistant plating for smooth operation and rust retardation.
The weight stack is elevated to facilitate user pin selection from seated position.
Premium-quality 3D urethane molded-foam padding for maximum comfort. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Automotive-grade, two-textured fabric features double top stitching on all seams.
Yes, gas-assisted ratcheting seat adjustment
Ratcheting seat adjustments require only a lift to release the lever. Handles include slip-resistant rubber sleeves with machined alloy end-caps. Adjustment points are highlighted with a contrasting color for ease-of-use.
Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone or Preva app.
Oversized, linear, re-circulating ball bearings run on case-hardened shafts and are sealed and self aligning. Pivot points and joints feature motor-grade sealed ball bearings, or sleeve bearings, utilizing either oil-impregnated bronze bushings or pre-lubricated nylon bushings. Bolts are grade 5 or above in all applications.
The drink-and-accessory holder features large open, even surfaced area, easily accessable and easy to keep clean.
Glass-fiber-reinforced nylon pulleys for durability, with precision motor-grade ball bearing pulleys. Cable consists of 3/16 inch (7″x19″) aircraft cable coated with black pressure-extruded nylon to 1/4 inch or 1/8 inch and coated to 3/16 inch. The cables conform to specification MIL-W-83420D-BARE cable only. When used, redirection pulleys route cables close to frame to minimize chance of external interference.
The frame is 11 gauge (.120 in) 2×4″ electroweld steel racetrack tubing. Movement arms are made of electroweld steel round tubing. The five-stage material prep/wash process if followed by an electrostatically applied, heat-cured powder coat.
Yes
Ratcheting gas-assisted seat adjusts to fit wide range of users. Handle grips angled for proper exercise mechanics.
5 lb (2.3 kg)
Pacific Blue
Dark Cavern
Black
160 lbs / 73 kg
All Spice
American Beauty
Black
Blue Jay
Burgundy
Deep Clay
Grey
Hunter Green
Navy
New Purple
Regal Blue
Slate
Gloss Metallic Silver
Metallic Ash
Desert Bronze
Black Magic Gloss
Gloss White
Black Pearl
49 L x 44 W inches / 124 L x 112 W cm
47 inches / 119 cm
44 inches / 112 cm
434 lbs / 197 kg
59 inches / 150 cm
470 lbs / 213 kg
Yes
Yes
