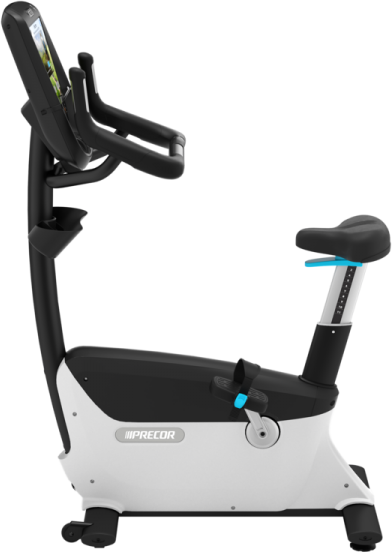

The UBK 685 upright bike features custom-designed handlebars with integrated handheld heart rate for maximum comfort and efficient workout experience. Easy seat adjustment, redesigned saddle for riding comfort, and improved knee over pedal spindle (KOPS) geometry for efficient pedaling mean a smooth, comfortable workout. This bike is a cost effective option for a broad range of environments such as corporate gyms, apartment complexes, and fire departments.
The easy to remove shroud ensures easy access to the belt-drive system for maintenance and servicing without removing the
pedals or crank.
Over-molded handle bars add comfort and durability while offering heart rate contacts and three ergonomic riding positions: upright, cruising and road. The familiar pop-pin seat adjustment similar to other commercial bikes allows the user to easily change the seat to their desired height.
With a touchscreen console just like a high-end phone, and a simple, intuitive interface that draws users deeper into their workout, the P82 console is a reliable fitness solution that will provide a personalized fitness experience that engages and motivates them to come back for more.
Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Optional
Yes
Integrated
Two-step powder-coating process on steel frame.
Pedal axles and bearings are designed for smooth operation and exceptional service life.
Improved, ergonomic saddle design with comfort groove is injection-molded polyurethane with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort.
Familiar pop-pin seat adjustment allows the exerciser to easily change the seat to their desired height.
Over-molded handlebar design offers the exerciser three comfortable riding positions: upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The optimum width of the handlebars provides stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the exerciser in better ergonomic position, with the forearms more directly under the shoulders. In the cruising position, the handlebar is more comfortable on the exerciser’s hands. Touch heart rate is integrated in the upright position.
Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal.
To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank are key to efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5-inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.
22 (level 1 at 20 RPM)
500 (level 25 at 150 RPM)
25
3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression.
3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt drive for smoother, quieter operation and reduced maintenance.
Resistance Level
Total Distance, Distance Remaining
Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts
Time Elapsed, Time Remaining, Time in Zone, Segment Time
RPM, Speed, Average Speed
Heart Rate, Average Heart Rate, Max Heart Rate
Yes
Yes
Yes
Yes
Metric and U.S. Standard
English, Chinese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
300 seconds (adjustable)
Lose Weight
4-3 Interval
Aerobic
Fat Burner
Heart Rate Zone
Be Fit
Manual
1-1 Interval
2-1 Interval
4-1 Interval
Rolling Hills
Mountain Peaks
Hill Climb
Heart Rate Zone
Push Performance
1-4 Interval
1-2 Interval
5 K
Heart Rate Zone
Watts Target
15 in / 38.1 cm LCD Capacitive Touchscreen
120 minutes (adjustable)
Yes. Touch heart rate sensors located conveniently on handlebars next to seat.
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.
Ability to set club parameters, e.g. to limit exercise time and pause time.
802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation
Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future)
43 in / 109 cm
21 in / 53 cm
144 lb / 65 kg
59 in / 150 cm
47 in / 119 cm
22 in / 56 cm
32 in / 81 cm
166 lb / 75 kg
~100-240V 50/60Hz 1.6 Amps
N/A
N/A
350 lb / 159 kg
58 to 78 inches / 147 to 198 cm
Gloss Metallic Silver
Black Pearl
Yes
Yes
Yes
Yes
Integrated
Integrated
15in. LCD Capacitive Touch Screen
Integrated
*Items that receive additional warranty coverage through the extended warranty dependent on offering purchased.
